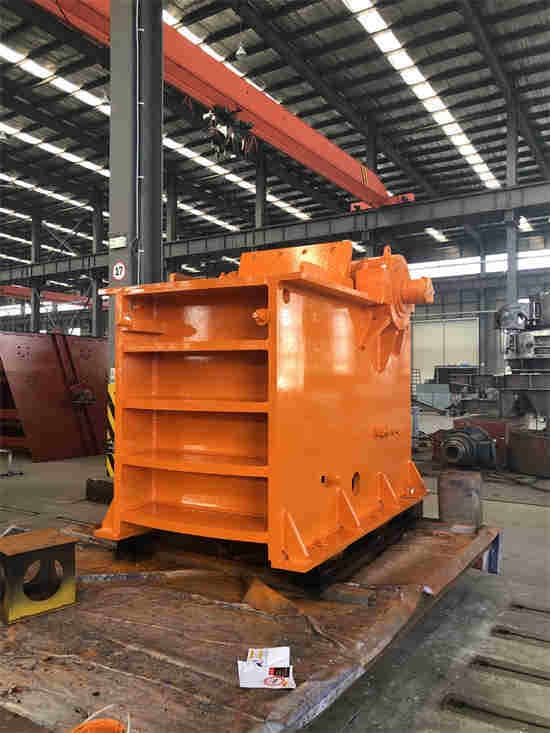

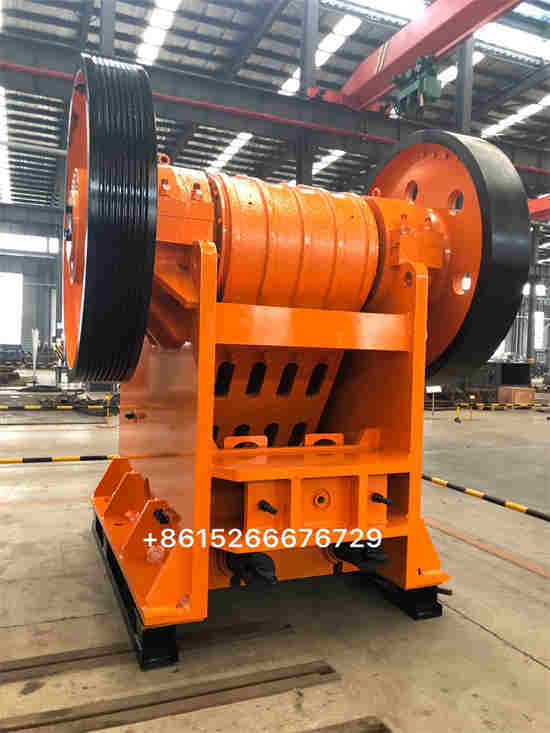

100TPH jaw crusher, PE600X900 Jaw Crusher

PE600X900 Jaw crusher， granite crusher

Commodity name： 100TPH jaw crusher, PE600X900 Jaw Crusher

Category:

Stone crushing plant

Key words:

100TPH jaw crusher, PE600X900 Jaw Crusher

Phone:

+86-15266676729

Inquiry

PE600x900 Primary Jaw Stone Crusher Machine for Aggreagte Crushing

100TPH jaw crusher, PE600X900 Jaw Crusher

Jaw Crusher is ideally suitable as primary and secondary crusher for material with compression strength less than 320Mpa. Jaw Crusher is of high crushing ratio, larger capacity, welldistributed final product size, simple

structure, reliable performance, convenient maintenance, metallurgy construction, highway, railroad, and waterconservancy,etc.The PE series concrete jaw crusher equipment plays an important role in concrete crushing equipment,whether as primary crusher or secondary crusher.In order to provide the comprehensive services,we also provide jaw crusher spare parts.The high quality jaw crusher plate is stable,powerful and efficient and it is widely used in domestic and oversea.

Principle of operation

The electrical motor transmits power to the eccentric shaft through vbelt and belt pulley. Then the exciting force generated by the eccentric shaft will make the movable jaw forwards and downwards. This movement would

trigger the plate to push the movable jaw forwards and backwards. When the movable jaw moves forth towards

the fixed jaw’, materials in the crushing cavity will be squashed or chopped. And then the movable jaw travels

back, the chopped or squashed materials which meted the requirement will be discharged from the outlet.

Since the motor keeps working, the crusher and discharge periodically to achieve mass production.

Performance features

1. Reversible jaw plate

2. Heattreated forged eccentric shafts

3. Advanced side plate bolt fixed system, easy for maintenance

4. Slantingwedge fixed jaw plate

5. Easy to operate, high dependability

6. Even final particles, high crushing ratio

The parameter of jaw crusher

Model	Feed Opening Size(mm)	Feed Size (mm)	Out Size (mm）	Capacity (t/h)	Power (kw)	Overall Dimension *(LWH)*
PE Series Jaw Crusher
PE400*600	400*600	≤340	40-90	15-40	30	145017501670
PE500*750	500*750	≤480	50-110	20-80	55	204619642010
PE600*900	600*900	≤520	65-130	50-150	75	224021282530
PE750*1060	750*1060	≤630	80-140	100-180	110	253823502782
PE900*1200	900*1200	≤800	100-230	180-280	132	295028823270
PE1200*1500	1200*1500	≤1000	150-350	300-800	200	459033424037
PEX Series Jaw Crusher
PEX250×1000	250×1000	≤210	25-60	10-40	30	134019251400
PEX250×1200	250×1200	≤210	25-60	15-50	37	149521251400
PEX300×1300	300×1300	≤250	25-90	20-70	75	167021561550
PEX500×1500	500×1500	≤350	30-150	50-150	90	188026602105
