PEX Jaw Crusher

PEX250x1200 Jaw crusher Secondary jaw crusher
  • Commodity name： PEX Jaw Crusher

Category:

Stone crushing plant

Key words:

PEX Jaw Crusher

Phone:

+86-15266676729

Inquiry
Related Products

INTRODUCTION OF SHANBAO JAW CRUSHER,MESIN CRUHSER

Application

Advantage

    PRIMARY CRUSHING:

    Mining

    Aggregate

    Demolition

    Industrial

    Construction

    Environmental

    Heavy Duty Design

    Long Life

    Cost Effective

    Standard Replacement Parts

    High Productivity





SHANBAO PEX250X1200 JAW CRUSHER, MESIN CRUSHER PERFORMANCE

Heavy-Duty Flywheels

Dual-Wedge-Adjust Assembly

Large, dynamically balanced flywheels provide a smooth

operation, thereby reducing peak horsepower

requirements, yielding greater efficiencies.

This allows for quick and easy adjustment of the

closed-side settings, eliminating shims, thus increasing

safety and reducing the time and effort traditionally

required to make adjustments.

Innovative Toggle Assembly

Saddle Block Bearing Support

Inline support design includes replaceable toggle seats

to minimize operating costs and protect your

investment.

Innovative configuration optimizes the crushing action

for maximum capacity through the full range of

closed-side settings.

Outboard bearings are mounted in machined pillow

blocks, which are bolted into machined cast steel

saddles.Unique mounting procedure ensures correct

alignment of the eccentric shaft and bearing

assemblies for longer service life.

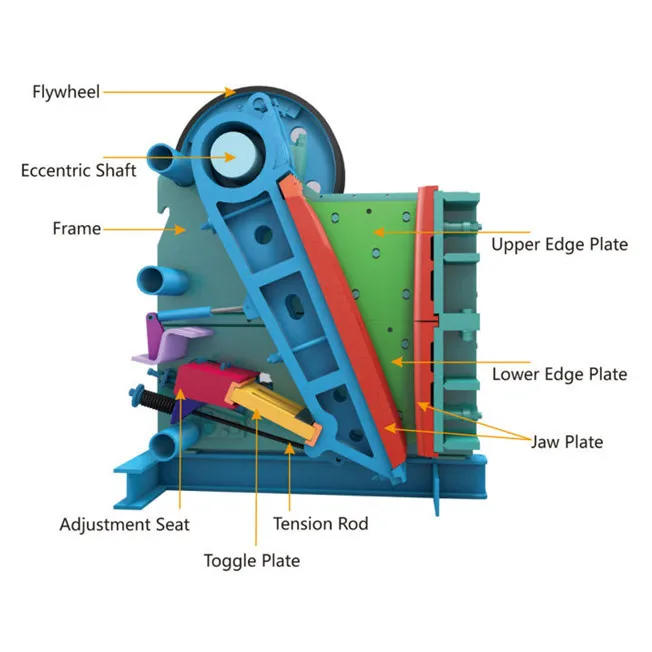

ENGINEERING INNOVATIONS

PEX Jaw Crusher



Shanbao PEX250X1200 mesin crusher Jaw crusher is a single toggle jaw crusher, characterized

by attention to detail, in both design and manufacture.

We have incorporated the best of the old and applied the

benefits of the latest technology.



The frame consists of two side plates of rolled steel, plus

hollow castings at front frame end and moving jaw which

give a high rigidity/weight ratio. Largeradius transition

areas reduce stress concentrations and welds are

positioned in low-stress areas.



The advantage of a welded frame is that it is equally

strong in all directions and ensures excellent durability

against shockloads. Thus minimizing the risk of failure

on the main-frame, as with a bolted construction.

PARAMETER OF SHANBAO JAW CRUSHER,MESIN CRUSHER

Model
Max. Feed
Size (mm)
Out Size
 (mm)
Capacity (t/h)
Motor power
(kw)
Overall Dimension
 (mm)
PEX250×1000
≤210
25-60
10-40
30
1340×1925×1400
PEX250×1200
≤210
25-60
15-50
37
1495×2125×1400
PEX300×1300
≤250
25-90
20-70
75
1670×2156×1550
PEX500x1500
≤350
30-150
50-150
90
1880×2660×2105
PE400×600
≤340
40-90
15-40
30
1450×1750×1672
PE500×750
≤480
50-110
20-80
55
2046×1964×2010
PE600×900
≤520
65-130
50-150
75
2350×2170×2540
PE700×1000
≤600
70-140
80-170
90
2280×2266×2530
PE750×1060
≤630
80-140
100-180
110
2538×2350×2782
PE800×1100
≤700
100-200
130-250
110
2795×2555×3010
PE900×1200
≤800
100-230
180-280
132&160
2950×2882×3270
PE1000×1300
≤900
140-280
250-550
160&200
3570x3350x3680
PE1200×1500
≤1000
150-350
300-800
200
4590×3342×4037

PRACTICAL CASE OF SHANBAO JAW CRUSHER , MESIN CRUSHER

Customer's Background:

This is a very strong stone company in Russia, buy

equipment is mainly used for stone crushing and

screening to meet local demand for stone.



Production Status:

Main equipment:PE750X1060 Jaw crusher 1 set,PF-1315 Impact crusher 1 set,2YK-1548 Vibrating Screen 2 set ect.

Raw material:limestone

Max.Feeding size:700mm

Final product size:0-6mm,6-10mm,10-14mm

Capacity:150-200 T/H

OUR SERVICE

Presale services: We can provide you with project design, process design, suitable purchase program for your

equipment.Also design and manufacture products based on your specific needs, to train your technical personnel.

Sale: We will accompany you to complete the equipment inspection, construction plan and assist in the

development process in detail.

After Sale Service: We send technicians to the scene to guide the equipment installation, commissioning and

training your operating personnel.

FAQ

FAQ

1.Q: Can I visit your factory?

A: Yes. Many domestic and international customers visit our factory every year.

2.Q: How long is the warranty of your equipment? Do you supply spare parts?

A: Our warranty period is one year generally. We can supply spare parts.

3.Q: Do you provide after-sale service?

A: Yes. We have a professional after-sale service team to promptly and thoroughly solve your problems.

4.Q: Do you provide benefication flow chart?

A: Yes. Our experienced engineers are specialized in designing process flow for various ores beneficiation, including

iron ore, tin ore, copper ore, gold ore, lead zinc ore, manganese ore, etc.
