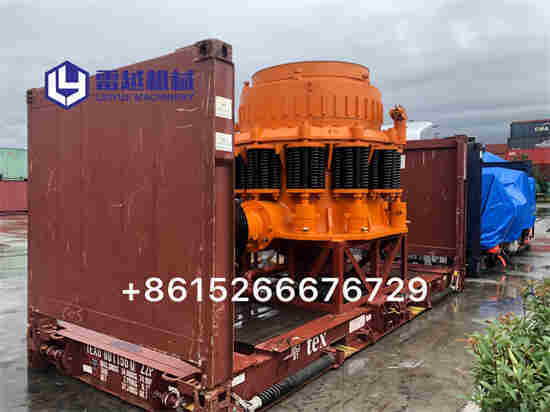

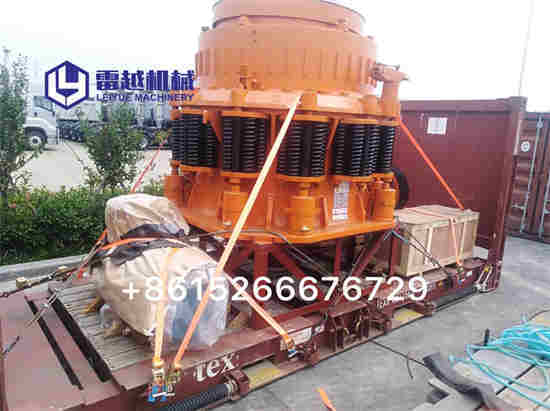

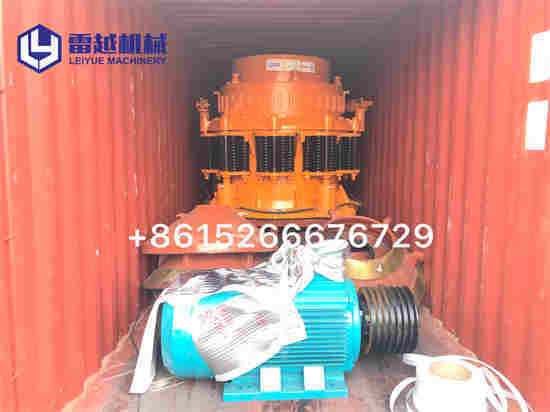

Symons Cone crusher
- Commodity name： Symons Cone crusher
Key words:
Symons Cone crusher
energy-saving crusher cone collects mechanical, hydraulic, electrical, automation, intelligent control technology into one set, and represents the world's most advanced crushing technology. energy-saving crusher cone has a number of unmatched advantages compared to traditional crushers, high crushing efficiency, low production costs and easy to maintain and adjust, broken products with excellent grain type, and can be widely used in the medium crushing, fine crushing and super fine crushing operations.
energy-saving crusher cone can be widely used in metal and nonmetal ores, cement, sand, metallurgy and other industries, suitable for the crushing various minerals and rocks whose Platt's hardness are less than 16, such as iron ore, nonferrous metal ore, granite, limestone , quartzite, sandstone, pebbles, etc.
>>Cone crusher working principle:
When the cone crusher is working, the engine rotates around a fixed point driven by the belt wheel or the coupling. The transmission shaft and the conical part of the cone crusher swing under the force from the eccentric bushing, which makes the crushing wall close to the pierced mortar wall at intervals, Then ,the ores will be impacted, squeezed and bent constantly in the crushing chamber. At last, the whole ore crushing process is finished.
Crusher Features1,Production in accordance with U.S. technical standards,
2,High capacity,is the corresponding specifications of the cone crusher 1.5-2 times,
3,Big crushing force can provide large production capacity,
4,Particle granularity uniformity,high prodcution rate,liner consumption greatly reduced,
5,Good sealing,reduce the wear of transmission parts and consumption of lubricating oil,
6,Flexible adjustment ,convenient operation,
7,WIth two kinds if crushing chamber,fine adaptability,
8,It adapt hydraulic lock,hydraulic adjustment ,hydraulic cleaning,high degree of automatization,
Technical ParameterStandard Type Main Parameters
| Model | Dia | Cavity | Feed Opening Size(mm) | Output Size (mm) | Capacity (t/h) | Power(KW) | Weight (t) | Overall Dimension L*W*H (mm) | |
| B75 | 900 | Fine | 83 | 102 | 9-22 | 45-91 | 75 | 15 | 2821*1880*2164 |
| Coarse | 159 | 175 | 13-38 | 59-163 | |||||
| B160 | 1295 | Fine | 109 | 137 | 13-31 | 109-181 | 160 | 27 | 2800*2342*2668 |
| Medium | 188 | 210 | 16-38 | 132-253 | |||||
| Coarse | 215 | 241 | 19-51 | 172-349 | |||||
| B220 | 1676 | Fine | 188 | 209 | 16-38 | 181-327 | 220 | 55 | 3911*2870*3771 |
| Medium | 213 | 241 | 22-51 | 258-417 | |||||
| Coarse | 241 | 268 | 25-64 | 299-635 | |||||
| B 7’ | 2134 | Fine | 253 | 278 | 19-38 | 381-726 | 315 | 110 | 4613*3251*4732 |
| Medium | 303 | 334 | 25-51 | 608-998 | |||||
| Coarse | 334 | 369 | 31-64 | 789-1270 | |||||
Short Head Main Parameters
| Model | Dia | Cavity | Feed Opening Size(mm) | Output size(mm) | Capacity(t/h) | Power(KW) | Weight(t) | Overall DimensionL*W*H(mm) | |
| D75 | 914 | Fine | 13 | 41 | 3-13 | 27-90 | 75 | 15 | 2821*1880*2410 |
| Coarse | 33 | 60 | 3-16 | 27-100 | |||||
| D160 | 1295 | Fine | 29 | 64 | 3-16 | 36-163 | 160 | 27 | 2800*2342*2668 |
| Medium | 54 | 89 | 6-16 | 82-163 | |||||
| Coarse | 70 | 105 | 10-25 | 109-227 | |||||
| D220 | 1676 | Fine | 35 | 70 | 5-13 | 90-209 | 220 | 55 | 3911*2870*3771 |
| Medium | 54 | 89 | 6-19 | 136-281 | |||||
| Coarse | 98 | 133 | 10-25 | 190-336 | |||||
| D7' | 2134 | Fine | 51 | 105 | 5-16 | 190-408 | 315 | 110 | 4130*3251*4454 |
| Medium | 95 | 133 | 10-19 | 354-508 | |||||
| Coarse | 127 | 178 | 13-25 | 454-599 | |||||
