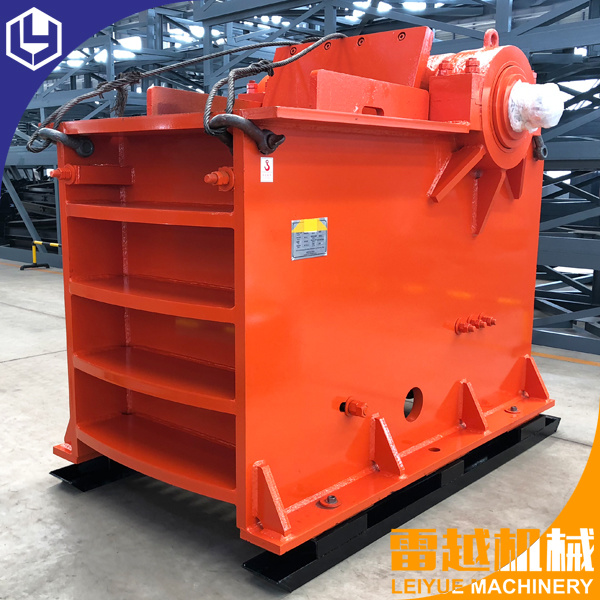

Primary jaw crusher
- Commodity name： Primary jaw crusher
Key words:
Primary jaw crusher
Primary Jaw Stone Crusher Machine for Aggreagte Crushing
Jaw Crusher is ideally suitable as primary and secondary crusher for material with compression strength less than 320Mpa. Jaw Crusher is of high crushing ratio, larger capacity, welldistributed final product size, simple
structure, reliable performance, convenient maintenance, metallurgy construction, highway, railroad, and waterconservancy,etc.The PE series concrete jaw crusher equipment plays an important role in concrete crushing equipment,whether as primary crusher or secondary crusher.In order to provide the comprehensive services,we also provide jaw crusher spare parts.The high quality jaw crusher plate is stable,powerful and efficient and it is widely used in domestic and oversea.
Principle of operation
The electrical motor transmits power to the eccentric shaft through vbelt and belt pulley. Then the exciting force generated by the eccentric shaft will make the movable jaw forwards and downwards. This movement would
trigger the plate to push the movable jaw forwards and backwards. When the movable jaw moves forth towards
the fixed jaw’, materials in the crushing cavity will be squashed or chopped. And then the movable jaw travels
back, the chopped or squashed materials which meted the requirement will be discharged from the outlet.
Since the motor keeps working, the crusher and discharge periodically to achieve mass production.
Performance features
1. Reversible jaw plate
2. Heattreated forged eccentric shafts
3. Advanced side plate bolt fixed system, easy for maintenance
4. Slantingwedge fixed jaw plate
5. Easy to operate, high dependability
6. Even final particles, high crushing ratio
The parameter of jaw crusher
Model | Feed Opening Size(mm) | Feed Size (mm) | Out Size (mm） | Capacity (t/h) | Power (kw) | Overall Dimension (L*W*H) |
PE Series Jaw Crusher | ||||||
PE400*600 | 400*600 | ≤340 | 40-90 | 15-40 | 30 | 1450*1750*1670 |
PE500*750 | 500*750 | ≤480 | 50-110 | 20-80 | 55 | 2046*1964*2010 |
PE600*900 | 600*900 | ≤520 | 65-130 | 50-150 | 75 | 2240*2128*2530 |
PE750*1060 | 750*1060 | ≤630 | 80-140 | 100-180 | 110 | 2538*2350*2782 |
PE900*1200 | 900*1200 | ≤800 | 100-230 | 180-280 | 132 | 2950*2882*3270 |
PE1200*1500 | 1200*1500 | ≤1000 | 150-350 | 300-800 | 200 | 4590*3342*4037 |
PEX Series Jaw Crusher | ||||||
PEX250×1000 | 250×1000 | ≤210 | 25-60 | 10-40 | 30 | 1340*1925*1400 |
PEX250×1200 | 250×1200 | ≤210 | 25-60 | 15-50 | 37 | 1495*2125*1400 |
PEX300×1300 | 300×1300 | ≤250 | 25-90 | 20-70 | 75 | 1670*2156*1550 |
PEX500×1500 | 500×1500 | ≤350 | 30-150 | 50-150 | 90 | 1880*2660*2105 |
