Sand washer
- Commodity name： Sand washer
Key words:
Sand washer
INTRODUCTION OF SAND WASHING MACHINE |

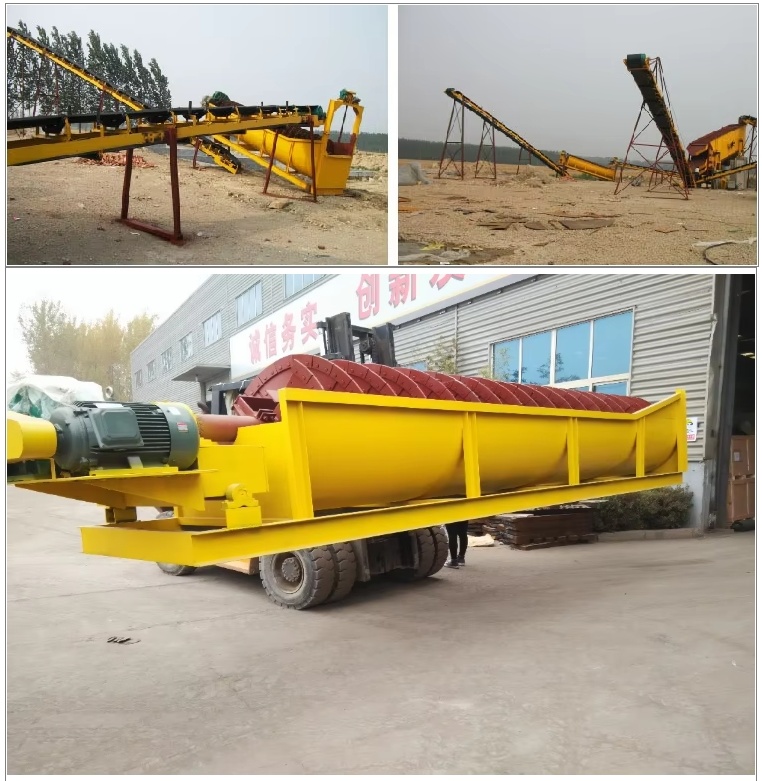

LEIYUE XS series sand washer is good representative of washing equipments, which is used for cleaning and separating flour a-
nd dust from aggregate after sieving. It’s used for rinsing different kinds of stones, applying to sand washing
work in material industry and sand factory.
DataTECHNICAL DATA OF SAND WASHER |
| Model | Screw Diameter(mm) | Feed Size(mm) | Water consumption | Capacity(t/h) | Motor power(kw) | Outline dimension(mm) |
| XL-508 | 508 | ≤10 | 14-88 | 20 | 7.5 | 8000*2343*1530 |
| XL-610 | 610 | ≤10 | 14-165 | 50 | 7.5 | 8000*2490*1530 |
| XL-762 | 762 | ≤10 | 18-124 | 75 | 11-15 | 9070*2650*1638 |
| XL-915 | 915 | ≤10 | 18-162 | 100 | 11-15 | 9070*2650*1638 |
| XL-1118 | 1118 | ≤10 | 27-333 | 175 | 30 | 9070*2830*1900 |
| 2XL-762 | 762 | ≤10 | 40-250 | 140 | 2*11 | 11580*5226*2370 |
| 2XL-915 | 915 | ≤10 | 105-620 | 200 | 215 | 9070*3300*1638 |
| 2XL-1118 | 1118 | ≤10 | 125-1400 | 350 | 222 | 9070*3890*1900 |
| XLZ-762 | 762 | ≤60 | 355-450 | 125 | 22 | 11580*5226*2370 |
| XLZ-915 | 915 | ≤60 | 400-600 | 175 | 30 | 6980*1200*1340 |
| XLZ-1118 | 1118 | ≤75 | 500-750 | 250 | 37 | 7400*1380*1950 |
| 2XLZ-762 | 762 | ≤60 | 600-800 | 150 | 2*22 | 6980*2091*1340 |
| 2XLZ-915 | 915 | ≤60 | 700-900 | 200 | 2*30 | 7120*2146*1590 |
ApplicationAPPLICATION OF SAND WASHING MACHINE |

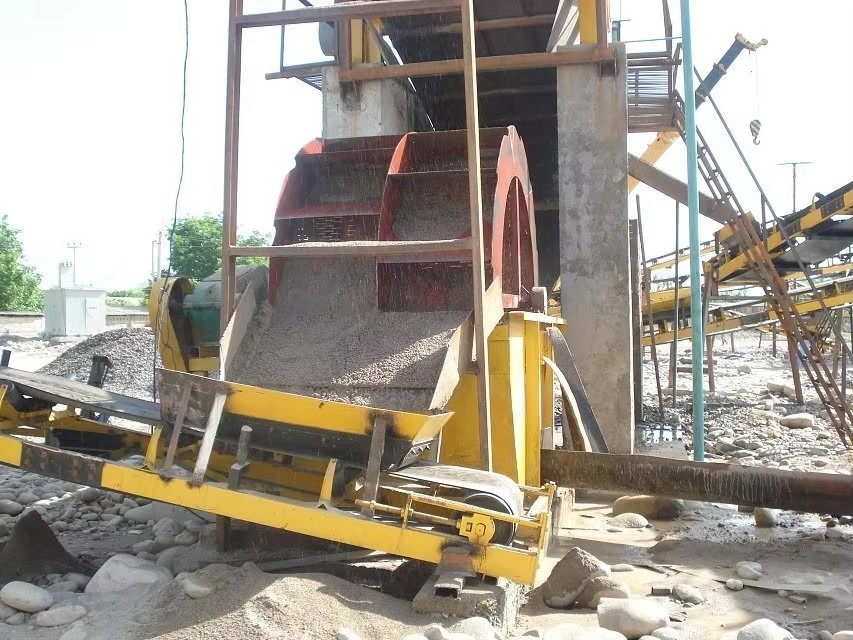

LEIYUE SX series crew sand washing machines adopt 15° tilted layout.there is a flow tank under the flume with triside board.The
head of screw merge in the flow tank.The motor through the decelerator drives the crew circumrotating.the water is fed in
the flow tank via the under porous plate.This series machines assemble washing,dehydrating and classifying function,
which are adopted in sandstone factory,construction site,hydroelectic site,hydroelectric station dam,glass manufacturing,
oil well development and so on.
FAQQ: What about Warranty? What will we do if the machine is broken down?
A: Ours Warranty is 1 year for whole machinery but spare parts.
We will provide the technical advice and find the solution immediately for you when the ma-
chine is in trouble-shoot. For those wear parts, we guarantee the high quality parts for long-term supply.
Q: What should we supply for you if we want to get a best quotation?
A: If you want us recommend a suitable type for you, please let us know
l You only need one crusher or a whole crushing line?
1. What is the capacity you need? (Tons per hour)
2.What is the max size of the stone (mm/inch)?
3.What is the output size you need?
4.What is the stone type?
Q: What can you help me to do for the business?
A: Many thanks for your trust, LEIYUE FACTORY can provide you with the pre-services of design scheme for complete production lines, sp-
ot inspection and operator training according to your demands and the conditions of applied spot, we can help
you choose the right equipments, drilling rig, loader, trucks, excavators and so on.
