Vibrating screen of stone crusher

LEIYUEVibratingscreen arewidelyusedincoaldressing,metallurgy,mine,powerstation,waterconservancyproject,buildingindustry,lightindustryandchemicalindustryandsoon.
  • Commodity name： Vibrating screen of stone crusher

Category:

Screening and Washers

Key words:

Vibrating screen of stone crusher

Phone:

+86-15266676729

Inquiry
Related Products

LEIYUE Vibrating screen are widely used in coal dressing,metallurgy,mine,power station,water conservancy project,buildingindustry,light industryand chemical industry and so on,they are efficient screening machines for the classification ofbulk materials such as coal,minerals,coke.etc.



ADVANTAGES OF VIBRATING SCREEN

1.The first choice sieving equipment after crushing

2.Multiple layers of screen,classrify different grades one time

3.Long vibrating screen line,with reliable structure

4.Strong exciting force,high screening efficiency

5.Low maintenance cost,durable screen

YK Series Circular Vibrating Screen Gold Screening Plant Sand Vibrating Screen

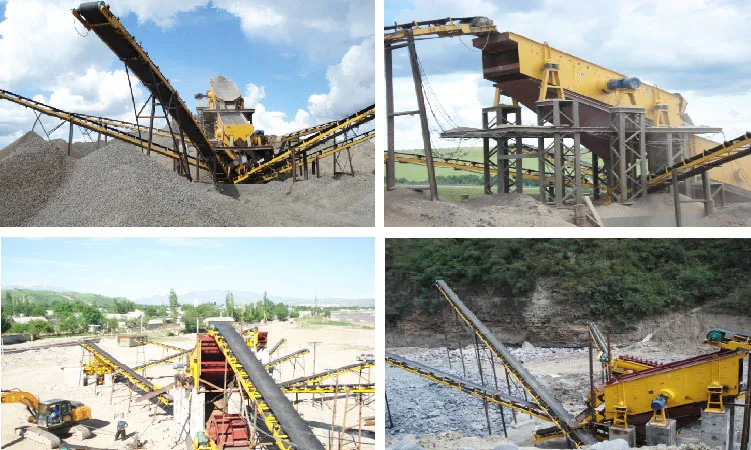

APPLICATION OF VIBRATING SCREEN

Application Fields

SIEVING AND CLASSIFYING:

 Mining ,Quarry

 Metallurgy

 Building Material processing

 Road and Bridge Construction

Processing Objects

CRUSHED ORES AND SANDS:

 Iron Ore,Gold mineral

 Coal Gange,Quarze Stone

 Basalt,Granite, Marble Stone

YK Series Circular Vibrating Screen Gold Screening Plant Sand Vibrating Screen

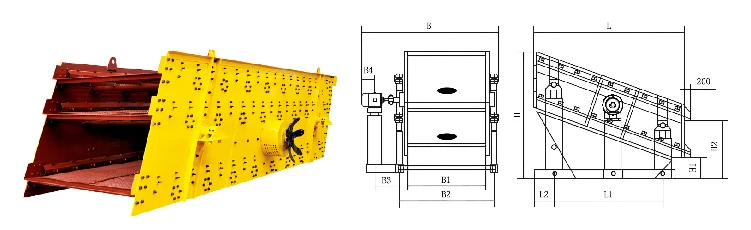

Working Principle
WORKING PRINCIPLE OF LEIYUE VIBRATING SCREEN
The motor takes the eccentic axle to rotate,   changesthe eccentric axle's rotating movement into the screen's recurred Linear movement, at the same time, makes use of the materal's gravity and the screen's installed luff, to made the materials from coarse to fine, dismounted from the screen hole by turn, so realize the aim of sizing materials.

YK Series Circular Vibrating Screen Gold Screening Plant Sand Vibrating Screen

ModelScreen Size(mm)Screen Hole Size (mm)Feed Size (mm)Capacity (t/h)Power (kw)Vibration Frequency (r/min)Double Amplitude (mm)
YK15481500*4800<70<12050-200119607
2YK15481500*4800<70<12050-200119607
3YK15481500*4800<70<12050-200159607
4YK15481500*4800<70<12050-200159607
2YK18601800*6000<70<20080-28018.57308
3YK18601800*6000<70<20080-28018.57308
4YK18601800*6000<70<20080-280307308
2YK21602100*6000<70<200100-450307308
3YK21602100*6000<70<200100-450227308
4YK21602100*6000<70<200100-450307308
2YK24702400*7000<70<400160-380307308
3YK24702400*7000<70<400160-450377308
4YK24702400*7000<70<400160-450457308

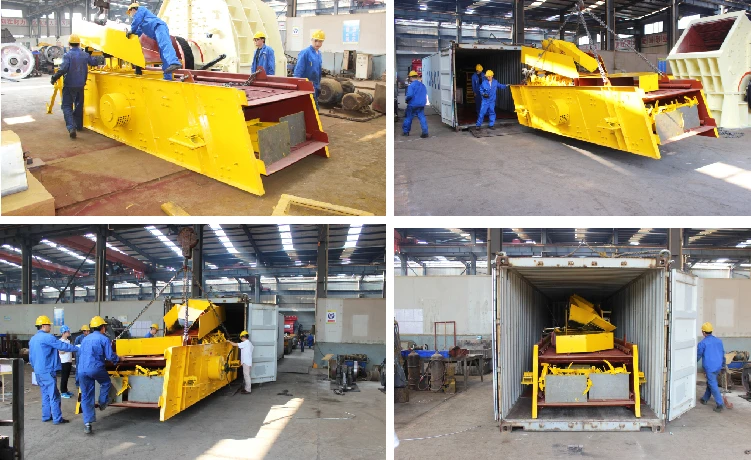

PACKAGING & SHIPPING

1.Sand blasting coat with high quality paint;

2.Product wrapped by PP-Bubble;

 3.Load container,spear Parts in wooden case

 4.Transportation by sea or train or air

 YK Series Circular Vibrating Screen Gold Screening Plant Sand Vibrating Screen

Installation

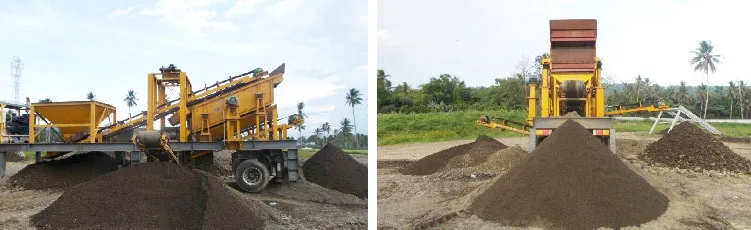

MOBILE SCREEN PLANT

We can design and make mobile screen plant as your requirment

.

YK Series Circular Vibrating Screen Gold Screening Plant Sand Vibrating Screen
