Mobile crusher plant
- Commodity name： Mobile crusher plant
Key words:
Mobile crusher plant
In the mining and quarry industry, Mobile combined crushing plant performs as a powerful mobile crusher plant.
They can be operated either as independent units, or as two-stage crushing plant with primary and secondary crushing stages, or as three-stage crushing plant with primary, secondary, and tertiary crushing according to clients' particular requirements. Likewise, it can be easily adjusted to suit crushing applications for two options, whether by choosing feeding to crusher or feeding to screen.
The parameter of mobile jaw crusher plant
| PP Series stone crusher plant prices | LPW600 | LP750 | LP900 | LP1060 | LP1200 |
| Transport dimensions | |||||
| Length(mm) | 8600 | 9600 | 11097 | 13300 | 15800 |
| Width(mm) | 2520 | 2520 | 3759 | 2900 | 2900 |
| Height(mm) | 3770 | 3500 | 3500 | 4440 | 4500 |
| Weight(kg) | 15240 | 22000 | 32270 | 57880 | 98000 |
| Axle weight(kg) | 10121 | 14500 | 21380 | 38430 | 64000 |
| King pin weigh(kg) | 5118 | 7500 | 10890 | 19450 | 34000 |
| Jaw Crusher | |||||
| Model | PE400*600 | PE500*700 | PE600*900 | PE750*1060 | PE900*1200 |
| Feed opening(mm) | 400*600 | 500*750 | 600*900 | 750*1060 | 900*1200 |
| Setting range(c.s.s)(mm) | 40-100 | 50-100 | 65-180 | 80-180 | 95-225 |
| Capacity(m3/h) | 10-35 | 25-60 | 30-85 | 70-150 | 100-240 |
| Feeder | |||||
| Model | GZT0724 | GZT0724 | GZT0932Y | ZSW490*110 | ZSW600*130 |
| Feed hopper volume(m3) | 3 | 4 | 7 | 10 | 10 |
| Hopper width(mm) | 2200 | 2500 | 3000 | 3000 | 3000 |
| Belt Conveyor | |||||
| Model | B650*6 | B800*7 | B1000*8 | B1000*11 | B1200*13 |

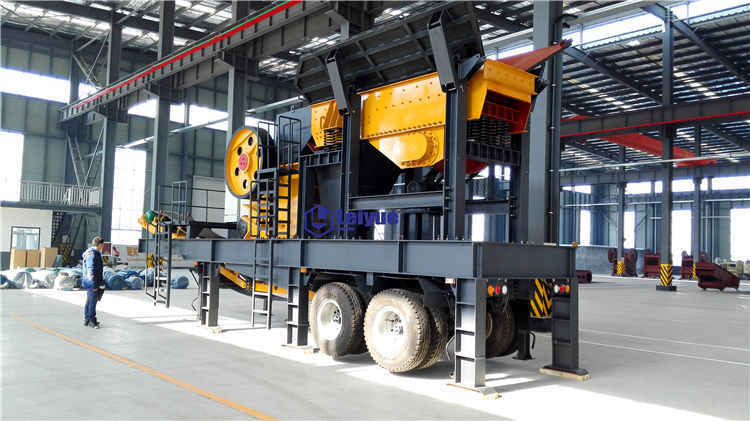

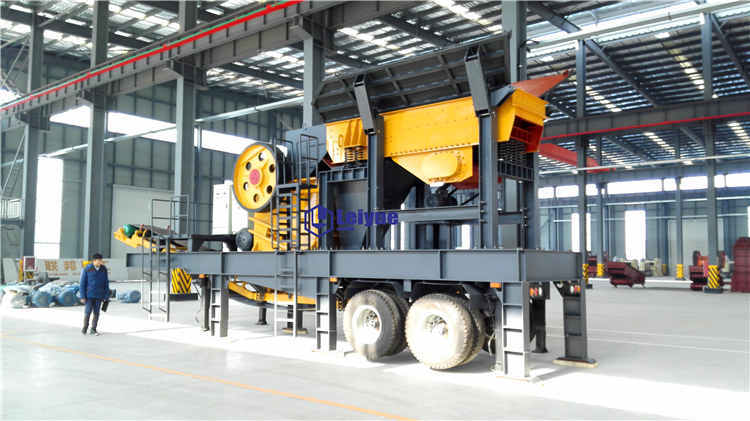

LEIYUE Mobile Crusher Plant incorporates all the equipments together on one truck, which has high chassis, narrower body compared with other trucks, this ensure the crushing plant be easily transported on highways and moved to crushing sites, so it is able to achieve on-site crushing without material transporting from one place to another place. In addition, the lengthened plant is able to transport the final products to the motor-lorry directly. The mobile crusher plant can start to work soon even in the bumpy groud without reinstallation, so it saves more time and money than fixed crushing plant which needs to install individual equipment one by one.
Mobile Crusher Plants can work independently or together with other devices according to coarse crushing or fine crushing requirements. Side discharging chute supports more screening and transporting ways. Diesel generators of the incorporated plant can not only supply power for this plant, but also suppy power for other plants of the process flow.
If you have interest, welcome to contact us.
